BO Motor vs Gear Motor: A Complete Beginner’s Guide

---

Introduction

If you’re diving into DIY electronics or robotics, you’ve likely come across the term BO motor or gear motor. But what exactly is a BO motor? Is it the same as a gear motor? And more importantly — which one should you use for your next project?

In this beginner-friendly guide, we’ll explain what BO motors are, how they compare with other gear motors, where to use them, and why they’re a favorite for hobbyists and students alike.

---

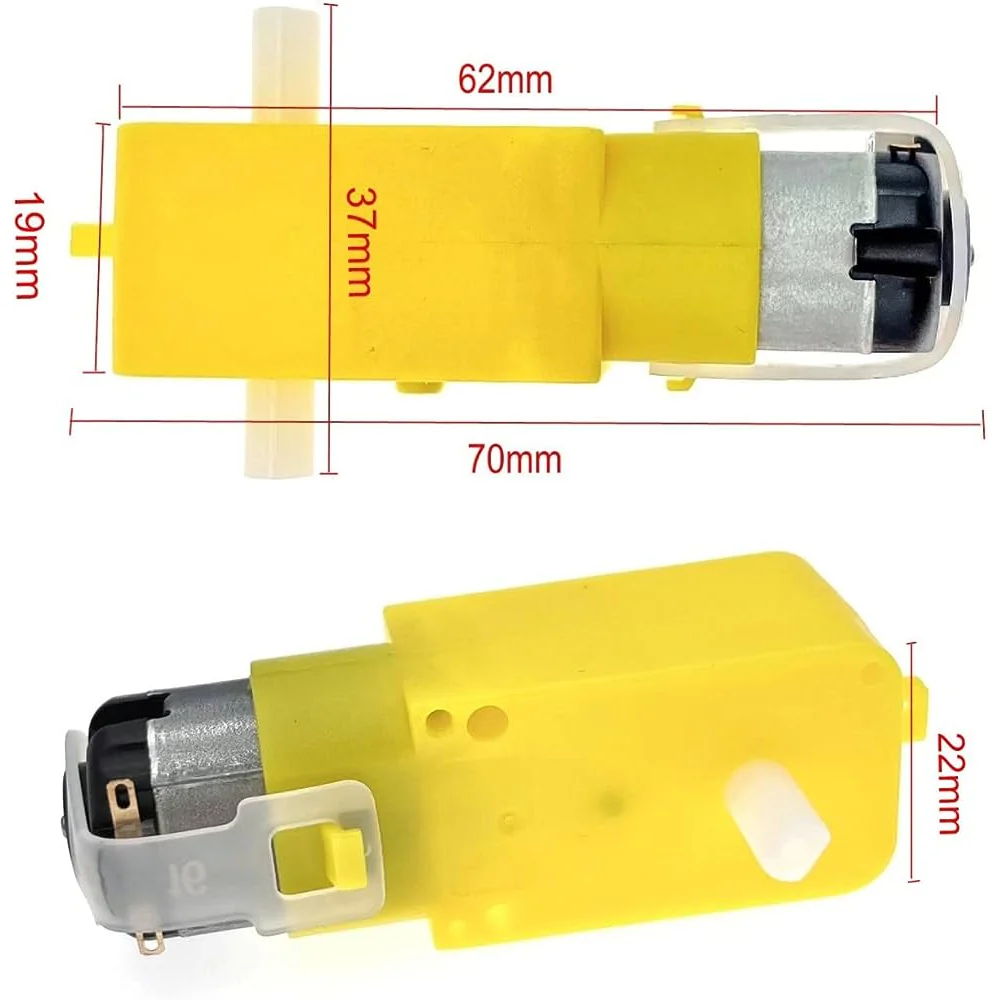

What is a BO Motor?

A BO motor, short for Battery Operated motor, is a compact DC motor that comes with an inbuilt plastic gear mechanism. It runs on low voltage (typically 3V–12V) and is commonly used in beginner-level robotics and DIY projects.

BO motors are lightweight, affordable, and incredibly easy to use — making them ideal for school projects, hobby robots, and simple automation experiments.

🧠 Fun Fact:

Every BO motor is a gear motor, but not every gear motor is a BO motor!

---

Why Is It Called a Gear Motor?

A gear motor is simply a motor with a gearbox attached. The gearbox reduces the motor’s speed (RPM) and increases torque (rotational force), making it more powerful and controllable.

BO motors are called gear motors because they also have a built-in gearbox, usually made of plastic. This gearbox helps the motor deliver high torque at low speeds, which is exactly what most beginner projects need.

---

BO Motor Specifications

Parameter	Typical Values
Operating Voltage	3V – 12V (commonly 6V)
RPM Variants	60, 100, 150, 200, 300
Shaft Type	Single or Dual
Output Torque	Low to Medium (suitable for small robots)
Gearbox	Built-in plastic gears
Direction	Bi-directional (reversible by changing polarity)
Cost	$1 or ₹40–₹70 (India)

---

Types of BO Motors

1. Straight/Center Shaft BO Motor
   • Shaft aligned in the center
   • Ideal for direct-wheel robots or cars
2. Right Angle/Side Shaft BO Motor
   • Shaft comes out at 90°
   • Best for compact or corner-mounted designs

---

Applications of BO Motors

BO motors are incredibly versatile. Here are some real-world examples of how they’re used:

• Line following robots
• Obstacle-avoiding bots
• DIY remote-controlled cars
• Conveyor belts for small loads
• Motorized toys
• Mini fans and gadgets

---

Advantages of BO Motors

✅ Easy to Use – Just connect to battery or motor driver
✅ Low Power Consumption – Works on simple AA batteries
✅ Affordable – Perfect for beginners
✅ Lightweight – Ideal for small robots
✅ Available in RPM Variants – Choose speed as per need

---

Limitations of BO Motors

❌ Plastic Gears – Not suitable for high-load tasks
❌ Low Torque – Can’t lift heavy weights
❌ Low Durability – Not meant for long-term industrial use
❌ Vibration – Some cheaper models vibrate more and lose balance

---

🔁 BO Motor vs Gear Motor: What’s the Difference?

Now comes the real question — how does a BO motor compare to other gear motors like metal gear motors, planetary gear motors, or servo motors?

Here’s a side-by-side comparison:

Feature	BO Motor	Metal Gear Motor	Planetary Gear Motor	Servo Motor
Gearbox Type	Plastic	Metal	Metal (Planetary)	Internal (precision)
Torque	Low	Medium-High	High	Controlled (position-based)
RPM Range	60–300	10–1000+	10–5000+	Controlled
Accuracy	Low	Medium	High	Very High
Control Method	On/Off or Motor Driver	Motor Driver	Motor Driver	PWM Signal
Cost	Very Low ($1)	Medium ($3–$8)	High ($8–$15)	Medium-High ($5–$20)
Best Use	DIY Robots, Toys	Heavier Robots, Wheels	Precision Projects	Arm Positioning, RC

🧠 Insight:

BO motors are good for learning and prototyping, but when you need more strength, speed, or precision, other gear motors take the lead.

---

⚙️ How to Use a BO Motor

Using a BO motor is very simple:

1. Connect two wires to the motor terminals
2. Connect to:
   • Battery directly (3V–6V) for simple rotation
   • Motor driver (like L298N or L293D) for directional control
3. Mount wheels or gears onto the shaft
4. Control it via Arduino or switches

---

🔌 Simple Arduino + BO Motor Setup

Here’s a quick setup if you want to control the BO motor using Arduino:

🧰 Components:

• BO Motor
• L293D Motor Driver Module
• Arduino Uno
• 9V Battery or power supply
• Jumper wires

🖥️ Code Snippet:

cppCopyEditint motorPin1 = 3;
int motorPin2 = 4;

void setup() {
  pinMode(motorPin1, OUTPUT);
  pinMode(motorPin2, OUTPUT);
}

void loop() {
  // Rotate Forward
  digitalWrite(motorPin1, HIGH);
  digitalWrite(motorPin2, LOW);
  delay(2000);

  // Rotate Backward
  digitalWrite(motorPin1, LOW);
  digitalWrite(motorPin2, HIGH);
  delay(2000);
}

---

📌 When Not to Use a BO Motor

Avoid using BO motors in:

• High-load mechanical arms
• Long-duration or industrial-grade robots
• Applications needing accurate movement control
• Outdoor rugged terrain bots

For those, go with metal gear motors, planetary motors, or stepper/servo motors instead.

---

🧠 Pro Tip: Choose the Right RPM

• 60 RPM – Good torque, slow movement (heavy bots)
• 100 RPM – Balanced performance (line followers)
• 300 RPM – Faster bots, less torque (lightweight RC cars)

Never blindly buy BO motors — always choose the right RPM for your task.

---

🔚 Final Thoughts

To wrap up:

• BO motors are gear motors — lightweight, easy, and perfect for beginners.
• They’re best used in small, low-torque projects like school bots, DIY cars, and home automation.
• For more power or precision, go with other gear motors like metal or planetary motors.
• Always pick the motor based on your project’s weight, speed, and control needs.

---

❓ Frequently Asked Questions (FAQs)

Q. Is a BO motor the same as a gear motor?

Yes — a BO motor is a type of gear motor with a plastic gearbox.

Q. Can I control a BO motor with Arduino?

Absolutely. Use a motor driver module like L298N or L293D.

Q. Are BO motors powerful?

They’re powerful enough for light-duty tasks, but not suitable for high-load applications.

Q. What does BO stand for?

BO = Battery Operated (but it also implies low-voltage, gear-based DC motors)

Q. How long does a BO motor last?

For small projects, they last well. But they’re not meant for continuous industrial use.
