DS18B20 Temperature Sensor: Features, Working, Pinout & How to Use with Arduino

If you’re building a DIY temperature monitoring system, the DS18B20 digital temperature sensor is one of the best choices. It offers precise, one-wire communication, waterproof versions, and a wide temperature range — making it ideal for hobbyists and professionals alike.

In this guide, you’ll learn everything you need to know: how it works, features, wiring with Arduino, code examples, and real-life applications.

---

🔍 What is the DS18B20 Temperature Sensor?

The DS18B20 is a digital temperature sensor that communicates over a 1-Wire protocol, meaning it requires only one data line (and ground) to communicate with a microcontroller.

This sensor is commonly used in:

• Weather stations
• Thermostats
• IoT devices
• Refrigeration monitoring systems

It can be found in both TO-92 (transistor-like) and waterproof sealed probes.

---

📦 Key Features of DS18B20

Feature	Specification
Operating Voltage	3.0V to 5.5V
Temperature Range	–55°C to +125°C
Accuracy	±0.5°C (–10°C to +85°C)
Resolution	9 to 12 bits (programmable)
Interface	1-Wire digital interface
Unique 64-bit Address	Each sensor has a unique ID
Waterproof Option	Yes (in sealed stainless-steel probe)

These features make the DS18B20 suitable for both indoor and outdoor temperature monitoring projects.

---

🧠 How Does the DS18B20 Work?

The DS18B20 works on Maxim’s 1-Wire protocol. It allows data transfer using just one data line (plus ground). Each sensor comes with a unique 64-bit serial code, so you can connect multiple DS18B20 sensors to the same data pin of a microcontroller like Arduino.

It measures temperature digitally, processes the signal internally, and sends the value in Celsius (°C) or Fahrenheit (°F) as a digital output.

---

🧪 DS18B20 Pinout

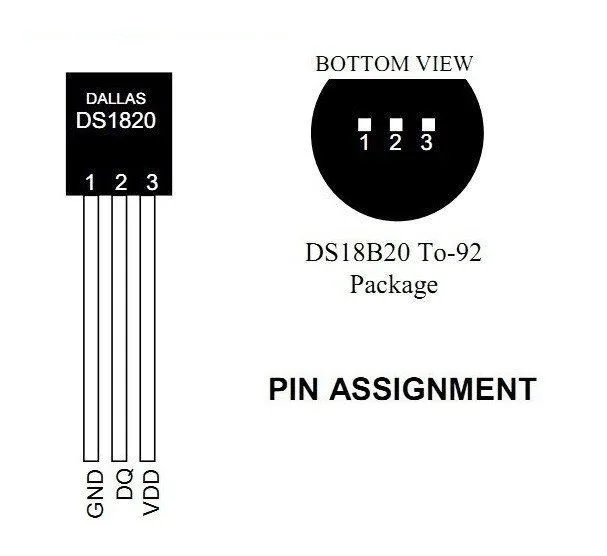

TO-92 Package Pinout:

markdownCopyEdit       _______
      |       |
(GND) |   o   | (VCC)
      |   o   |
      |___o___| (DQ - Data)

Pin	Function
1	Ground
2	Data
3	VCC

Important: You’ll need a 4.7kΩ pull-up resistor between the VCC and data pin for reliable communication.

---

⚙️ DS18B20 Circuit Diagram with Arduino

🧰 Components Required:

• DS18B20 sensor (TO-92 or waterproof probe)
• Arduino Uno
• 4.7kΩ resistor
• Breadboard & jumper wires

🔌 Wiring:

DS18B20 Pin	Arduino Pin
GND	GND
VCC	5V
Data (DQ)	Digital Pin 2 (with 4.7kΩ pull-up to VCC)

🔧 Code Example:

Make sure to install the following Arduino libraries:

• OneWire
• DallasTemperature

cppCopyEdit#include <OneWire.h>
#include <DallasTemperature.h>

#define ONE_WIRE_BUS 2

OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);

void setup() {
  Serial.begin(9600);
  sensors.begin();
}

void loop() {
  sensors.requestTemperatures();
  float tempC = sensors.getTempCByIndex(0);
  Serial.print("Temperature: ");
  Serial.print(tempC);
  Serial.println(" °C");
  delay(1000);
}

---

🏠 Applications of DS18B20

The DS18B20 is versatile and used in many real-world applications:

1. Smart Thermostats – For automated HVAC control.
2. IoT Weather Stations – Monitors outdoor temperature data.
3. Cold Chain Monitoring – Ensures proper temperature for food or medicine storage.
4. Aquarium Temperature Control – Maintains safe water temperature.
5. Server Room Monitoring – Prevents overheating of computer systems.

---

✅ Advantages of DS18B20

• Digital Output – No need for analog-to-digital conversion.
• Multiple Sensors on One Pin – Efficient wiring.
• Accurate & Stable – ±0.5°C accuracy.
• Wide Operating Range – Suitable for extreme environments.
• Waterproof Option – Ideal for wet conditions.

---

⚠️ Limitations & Precautions

• Requires pull-up resistor.
• 1-Wire protocol can be slow for large sensor networks.
• Doesn’t work with analog-only systems.
• Must be initialized properly in software (using libraries).

---

🆚 DS18B20 vs LM35

Feature	DS18B20	LM35
Output	Digital	Analog
Accuracy	±0.5°C	±0.5°C
Wiring	Single-wire	Separate Vout
Multiplexing	Easy (unique ID)	Complex
Waterproof	Yes (available)	No

🔑 DS18B20 is better suited for digital systems like Arduino and Raspberry Pi.

---

---

❓ Frequently Asked Questions (FAQs)

Q1: How accurate is the DS18B20?

The sensor provides ±0.5°C accuracy within the range of –10°C to +85°C.

Q2: Can I connect multiple DS18B20 sensors to one pin?

Yes, you can connect multiple sensors to the same data line due to each having a unique 64-bit address.

Q3: What does the pull-up resistor do?

It ensures reliable communication on the data line. Without it, the sensor may give incorrect readings or fail to respond.

Q4: Is the DS18B20 waterproof?

The TO-92 version is not waterproof, but probe versions are fully sealed for wet environments.

Q5: Can I use DS18B20 with Raspberry Pi?

Yes, it works well with Raspberry Pi via GPIO and Python libraries like w1thermsensor.

---

🏁 Conclusion

The DS18B20 temperature sensor is a powerful yet affordable component for temperature monitoring projects. Its digital communication, wide temperature range, and flexibility to connect multiple sensors make it a top choice for Arduino and IoT enthusiasts.

Whether you’re building a smart thermostat, greenhouse monitor, or server room alert system, the DS18B20 has you covered.
