NodeMCU (ESP8266): Complete Guide, Features, Pinout & Comparison

The NodeMCU (ESP8266) is one of the most popular Wi-Fi-enabled microcontroller development boards in the world of DIY electronics, IoT projects, and home automation. It’s cost-effective, powerful, and supports programming via Arduino IDE, making it beginner-friendly. In this guide, we’ll cover everything you need to know about NodeMCU, including its pinout, working, programming, and comparisons with ESP32 and Arduino.

---

🧠 What is NodeMCU (ESP8266)?

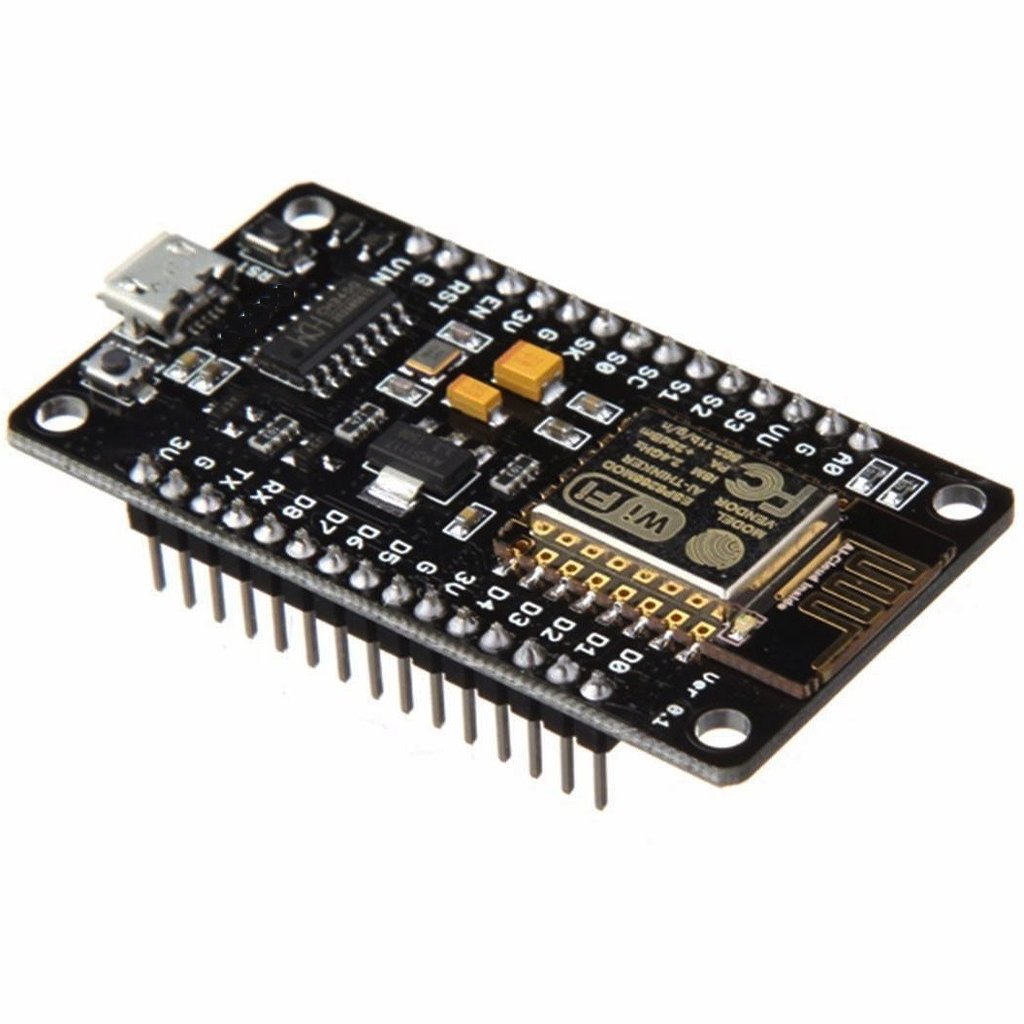

NodeMCU is an open-source IoT platform based on the ESP8266 Wi-Fi SoC developed by Espressif Systems. The name “NodeMCU” typically refers to a development board that includes the ESP8266 chip, USB interface, and breakout pins — ready for prototyping.

Unlike traditional microcontrollers like Arduino UNO, NodeMCU comes with built-in Wi-Fi, making it ideal for IoT-based applications.

---

📦 NodeMCU (ESP8266) Features

Feature	Description
Microcontroller	ESP8266 (ESP-12E Module)
Clock Speed	80 MHz / 160 MHz
Flash Memory	4 MB
RAM	50 KB available
Wi-Fi	802.11 b/g/n
GPIO Pins	11 (PWM, ADC, UART, I2C, SPI support)
Operating Voltage	3.3V
Programming	Arduino IDE / Lua / MicroPython
USB Interface	Micro USB (for power & code upload)
Price	Very low (~$3–$6 USD)

---

🔌 NodeMCU Pinout Diagram

The NodeMCU board includes multiple General Purpose Input/Output (GPIO) pins. Some of these pins are shared with SPI, I2C, and UART peripherals.

🧾 Commonly Used Pins:

Pin	Function
D0	GPIO16 – Wakeup (no PWM)
D1	GPIO5 – I2C (SCL)
D2	GPIO4 – I2C (SDA)
D3	GPIO0 – Must be HIGH at boot
D4	GPIO2 – Onboard LED (Active LOW)
D5	GPIO14 – SPI CLK
D6	GPIO12 – SPI MISO
D7	GPIO13 – SPI MOSI
D8	GPIO15 – Must be LOW at boot
A0	ADC (0V to 1V)
RX	GPIO3 – Serial receive
TX	GPIO1 – Serial transmit

⚠️ Boot-sensitive pins (D3, D4, D8) should be used carefully.

---

⚙️ How NodeMCU (ESP8266) Works

At its core is the ESP8266 chip, which handles both Wi-Fi connectivity and microcontroller functions. When you upload a program using the Arduino IDE or Lua interpreter, it is stored in the onboard Flash memory.

Once powered on, the board:

1. Boots up from flash.
2. Connects to Wi-Fi (if coded).
3. Executes the user program (e.g., reads sensors, sends data to cloud).

NodeMCU uses firmware written in C++ or Lua. Thanks to its USB interface, it can be directly programmed using Arduino IDE over Micro USB.

---

🔗 How to Program NodeMCU in Arduino IDE

🔧 Required Setup:

1. Install Arduino IDE
2. Add ESP8266 Board Support in Board Manager:
   • File > Preferences > Additional Board URLs: bashCopyEdithttp://arduino.esp8266.com/stable/package_esp8266com_index.json
   • Then go to Tools > Board Manager > Install “esp8266 by ESP8266 Community”
3. Select Board:
   • Tools > Board > NodeMCU 1.0 (ESP-12E Module)
4. Connect via USB and upload your code!

---

💻 Blink Example Code (Onboard LED):

cppCopyEditvoid setup() {
  pinMode(LED_BUILTIN, OUTPUT); // D4 (GPIO2)
}

void loop() {
  digitalWrite(LED_BUILTIN, LOW);  // Turn LED ON
  delay(1000);
  digitalWrite(LED_BUILTIN, HIGH); // Turn LED OFF
  delay(1000);
}

This will blink the onboard LED connected to D4 (GPIO2).

---

🌐 Use Cases of NodeMCU (ESP8266)

• 📶 Wi-Fi Controlled LEDs, Motors, or Relays
• 🏠 Smart Home Automation
• 📡 IoT Weather Station (with DHT11/DHT22)
• 🌍 Data Logging to Thingspeak, Blynk, or Firebase
• 🔔 Notification Alerts via Webhooks
• 📈 Real-Time Sensor Dashboards
• 🚰 Smart Plant Watering Systems

---

⚖️ NodeMCU vs Other Boards (ESP32, Arduino UNO, Raspberry Pi Pico)

Feature	NodeMCU (ESP8266)	ESP32	Arduino Uno	Raspberry Pi Pico
Wi-Fi	✅ Yes	✅ Yes + BT	❌ No	❌ No
Bluetooth	❌ No	✅ Yes	❌ No	❌ No
GPIO Pins	~11	~30+	14	26
ADC	1 (10-bit)	18 (12-bit)	6 (10-bit)	3 (12-bit)
Clock Speed	80–160 MHz	160–240 MHz	16 MHz	133 MHz
Programming	Arduino/Lua/Python	Arduino/ESP-IDF	Arduino only	MicroPython/C
USB Support	Micro USB	Micro USB/USB-C	USB-B	Micro USB
Price	~$3	~$5–10	~$6–8	~$4–6

🔎 Verdict:

• ✅ Choose NodeMCU for simple IoT and Wi-Fi projects.
• 🧠 Use ESP32 if you need more GPIOs or Bluetooth.
• 💡 Use Arduino UNO if Wi-Fi isn’t required and for absolute beginners.
• 💻 Use RPi Pico for advanced MicroPython-based multi-core tasks.

---

🧪 NodeMCU-Compatible Sensors & Modules

Sensor/Module	Purpose
DHT11/DHT22	Temperature & Humidity
HC-SR04	Ultrasonic Distance
IR Sensor	Motion Detection
Relay Module	Device Switching
OLED Display (I2C)	Visual Output
DS18B20	Waterproof Temperature
MQ Gas Sensors	Air Quality
DS3231 RTC	Real Time Clock

---

🙋‍♂️ Frequently Asked Questions (FAQs)

❓ Can NodeMCU run on 5V power?

No, the ESP8266 runs on 3.3V, but the NodeMCU board accepts 5V via Micro USB and regulates it down internally.

❓ Can I connect NodeMCU to cloud services?

Yes! It works great with:

• Thingspeak
• Blynk
• Firebase
• IFTTT
• MQTT servers

❓ Does NodeMCU have Bluetooth?

No, the ESP8266 chip does not support Bluetooth. Use ESP32 for Wi-Fi + Bluetooth.

❓ Can I run MicroPython on NodeMCU?

Yes, you can flash MicroPython firmware and control the board with Python code.

❓ What IDEs can be used to program NodeMCU?

• Arduino IDE
• VS Code + PlatformIO
• Lua uploader tools
• Thonny (for MicroPython)

---

🔧 Troubleshooting Tips

Problem	Fix
COM Port not detected	Install CH340 USB driver
Code not uploading	Hold FLASH button during boot
Wi-Fi not connecting	Check SSID/password in code
Random reboots	Power supply may be unstable
GPIO not responding	Avoid boot-sensitive pins (D3, D8)

---

📘 Summary

The NodeMCU (ESP8266) board is a reliable and affordable way to bring Wi-Fi capabilities into your DIY electronics. With built-in networking, Arduino compatibility, and extensive community support, it’s a perfect choice for beginners and pros alike.

Whether you’re building a smart home system or logging weather data to the cloud, NodeMCU gets the job done — with fewer wires, less code, and minimal cost.

---
