OLED Display (I2C): Complete Guide, Wiring, Code & Comparison

An OLED Display (I2C) is one of the most elegant, power-efficient, and versatile display modules for DIY electronics. Whether you’re building an Arduino-based project, a weather station, or a wearable device, this tiny screen can provide sharp visual feedback. In this complete guide, you’ll learn what an I2C OLED display is, how to wire it, display text and graphics, and compare it with other display technologies.

---

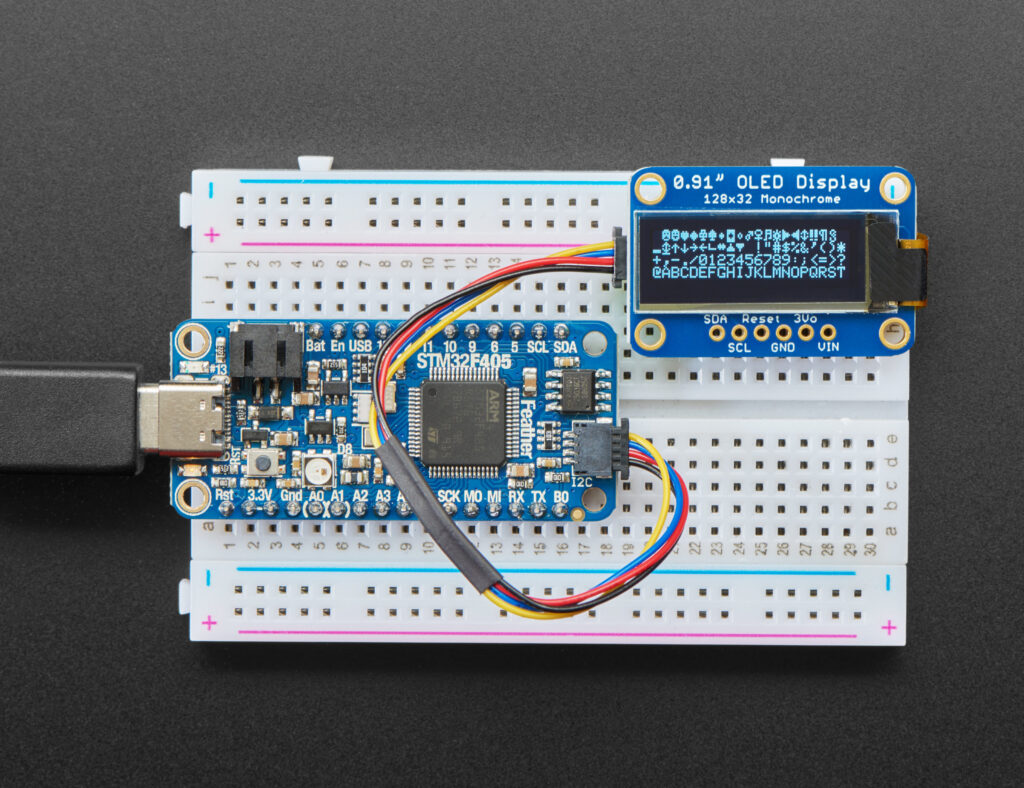

🔍 What is an OLED Display (I2C)?

OLED (Organic Light-Emitting Diode) displays emit light directly from pixels, unlike traditional LCDs that need a backlight. The I2C OLED display uses the I2C communication protocol, requiring only two data lines (SDA and SCL) to operate, making it ideal for microcontrollers with limited I/O pins.

Most common modules feature a 0.96-inch screen with a resolution of 128×64 pixels and use the SSD1306 driver IC.

---

📦 Features of I2C OLED Display

Feature	Specification
Resolution	128×64 pixels
Interface	I2C (2 wires: SDA & SCL)
Driver IC	SSD1306
Voltage	3.3V–5V compatible
Power Consumption	Low (<20mA)
Color	Usually Monochrome (White/Blue/Yellow)
Viewing Angle	>160°
Size	Commonly 0.96”, 1.3”, 1.5”

---

🧾 Pin Configuration of I2C OLED Display

Pin	Description
GND	Ground
VCC	Power (3.3V or 5V)
SCL	I2C Clock Line
SDA	I2C Data Line

---

⚙️ How OLED I2C Display Works

Unlike LED or LCD displays that require refreshing or backlight, OLEDs produce light pixel by pixel using organic compounds. Each pixel can turn on/off independently, enabling sharp contrast and deep blacks.

The I2C communication allows microcontrollers to control the display using just two pins. The SSD1306 driver handles the low-level pixel control, while high-level libraries like Adafruit_SSD1306 allow easy drawing of text, lines, and bitmaps.

---

🔗 Wiring OLED Display (I2C) with Arduino

🧰 Required Components:

• I2C OLED Display (SSD1306, 128×64)
• Arduino UNO/Nano/ESP32
• Jumper wires
• Breadboard

🖥️ Circuit Connections:

Arduino UNO	OLED Display
GND	GND
5V	VCC
A4	SDA
A5	SCL

⚠️ For ESP32 or ESP8266 boards, I2C pins are different:

• ESP32: SDA = GPIO 21, SCL = GPIO 22
• ESP8266 (NodeMCU): SDA = D2, SCL = D1

---

💻 Sample Code for OLED Display (I2C)

Install these libraries via Arduino Library Manager:

• Adafruit SSD1306
• Adafruit GFX

cppCopyEdit#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

void setup() {
  Serial.begin(9600);
  if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
    Serial.println(F("OLED not found"));
    while (true);
  }

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 10);
  display.println("Hello from ToolopediaX!");
  display.display();
}

void loop() {
  // Your dynamic content here
}

---

🧪 Applications of I2C OLED Displays

• 📈 Sensor Monitoring (temperature, humidity, gas)
• 🕹️ Game Displays
• ⌚ Wearables and Smart Watches
• 📟 Mini Dashboards
• 🚀 IoT Devices and Clocks
• 🎛️ Oscilloscopes or Signal Visualizers

---

⚖️ Comparison: I2C OLED vs Other Display Modules

Feature	OLED (I2C)	LCD 16×2	OLED (SPI)	TFT LCD
Interface	I2C (2 wires)	I2C/Parallel	SPI (4 wires)	SPI/Parallel
Power Use	Low	Medium	Medium	High
Size	Compact	Medium	Compact	Large
Resolution	128×64	16 chars × 2 lines	128×64	160×128 / 320×240
Color	Mono	Mono	Mono	Full Color
Contrast	Very High	Low-Medium	High	High
Refresh Rate	Fast	Slow	Fast	Very Fast
Ease of Use	Very Easy	Easy	Moderate	Moderate-Advanced
Cost	Low	Very Low	Slightly Higher	High

🧾 Verdict:

• Use I2C OLED for compact, high-contrast displays in sensor/portable projects.
• Use LCD 16×2 if you just want text and ultra-simple interface.
• Use SPI OLED for faster data rates and animation.
• Use TFT LCD for color GUIs, video, and rich graphics.

---

📂 Choosing the Right OLED Module

Parameter	Considerations
Interface	I2C is better for simpler wiring
Voltage Compatibility	Ensure it supports 3.3V or 5V (check datasheet)
Driver IC	SSD1306 is most common and widely supported
Resolution	128×64 is standard; 128×32 is narrower
Size	Choose from 0.96”, 1.3”, or larger based on your need

---

🙋‍♂️ Frequently Asked Questions (FAQs)

❓ Can I use multiple I2C OLEDs on one Arduino?

Yes, if each display has a unique I2C address. Use I2C scanners to find and set addresses.

❓ What is the I2C address of SSD1306 OLED?

Typically 0x3C or 0x3D. Use an I2C scanner sketch to detect yours.

❓ Is the OLED display sunlight readable?

Not directly. OLEDs have high contrast, but their brightness is lower than TFTs. They are great indoors or under shade.

❓ How to prevent OLED burn-in?

Avoid displaying static content for long periods. Use screen savers or rotate the data.

❓ Can I display images and custom graphics?

Yes, you can use tools like LCD Assistant or online bitmap-to-hex converters to display logos and images.

---

🛠️ Troubleshooting Tips

Issue	Solution
OLED not turning on	Check VCC, GND, and address
Display shows garbage	Use correct library & address
Flickering text	Avoid redundant redraws or use partial updates
I2C scanner not detecting	Try alternate pull-up resistors or I2C pins

---

🧠 Conclusion

The OLED Display (I2C) is a powerful, space-saving, and energy-efficient tool for any electronics enthusiast or prototyper. Its minimal wiring, crisp visuals, and flexible libraries make it ideal for real-world projects — from clocks and smart gadgets to IoT dashboards and game consoles.

Compared to traditional LCDs and SPI OLEDs, it wins in simplicity, style, and clarity — making it the go-to display for modern microcontroller projects.

---

✅ Key Takeaways:

• Use I2C OLED for simple, two-wire interfacing.
• Libraries like Adafruit SSD1306 make development quick.
• Choose the correct I2C address and voltage level.
• OLEDs are better than LCDs in contrast and aesthetics.

---
